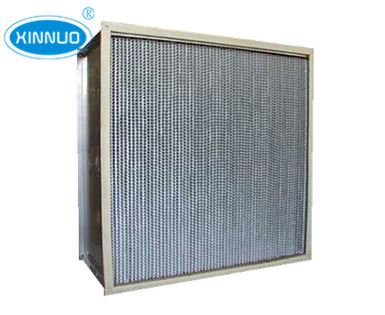

有隔板亞高效空氣過濾器
Have clapboard and efficient air filter
特點Features
●效率高、阻力低、風速均勻性好
●適用于各種局部?jī)艋O(shè)備和潔凈廠房的中級空氣過濾或一般空氣凈化級別的末端凈化
●High efficiency, low resistance, good uniformity winds
●Applicable to various local purification equipment and clean workshop intermediate air filtration or general air purification level of end purification
構成材料及運行條件
Materials and operating conditions
●框材：金屬外框或木框
●External frane：Outside the metal box or classic
●密封物：聚胺脂膠
●Sealant：Gel-glue
●分隔物：膠板紙或鋁箔
●Filter media：JiaoBanZhi or aluminum foil
●密封條：醋酸乙酯
●Gasket：EVA
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（比色法） Efficiency (%) | 容塵量 Dust capacity (g) |
XN-4J | 305×305×150 | 400 | ≤110 | ≥95 | 200 |
XN-700J | 320×320×220 | 700 | ≤110 | ≥95 | 350 |
XN-10J | 484×484×150 | 1000 | ≤110 | ≥95 | 400 |
XN-17J1 | 484×484×220 | 1700 | ≤110 | ≥95 | 600 |
XN-25J1 | 726×484×220 | 2500 | ≤110 | ≥95 | 900 |
XN-34J1 | 968×484×220 | 3400 | ≤110 | ≥95 | 1200 |
XN-17J2 | 610×610×150 | 1700 | ≤110 | ≥95 | 600 |
XN-25J2 | 915×610×150 | 2500 | ≤110 | ≥95 | 900 |
XN-34J2 | 1220×610×150 | 3400 | ≤110 | ≥95 | 1200 |
XN-26J | 630×630×220 | 2600 | ≤110 | ≥95 | 900 |
XN-39J | 945×630×220 | 3900 | ≤110 | ≥95 | 1400 |
XN-52J | 1260×630×220 | 5200 | ≤110 | ≥95 | 1800 |
XN-35J | 610×610×292 | 3500 | ≤110 | ≥95 | 1200 |
XN-52J | 915×610×292 | 5200 | ≤110 | ≥95 | 1800 |
XN-70J | 1220×610×292 | 7000 | ≤110 | ≥95 | 2400 |
